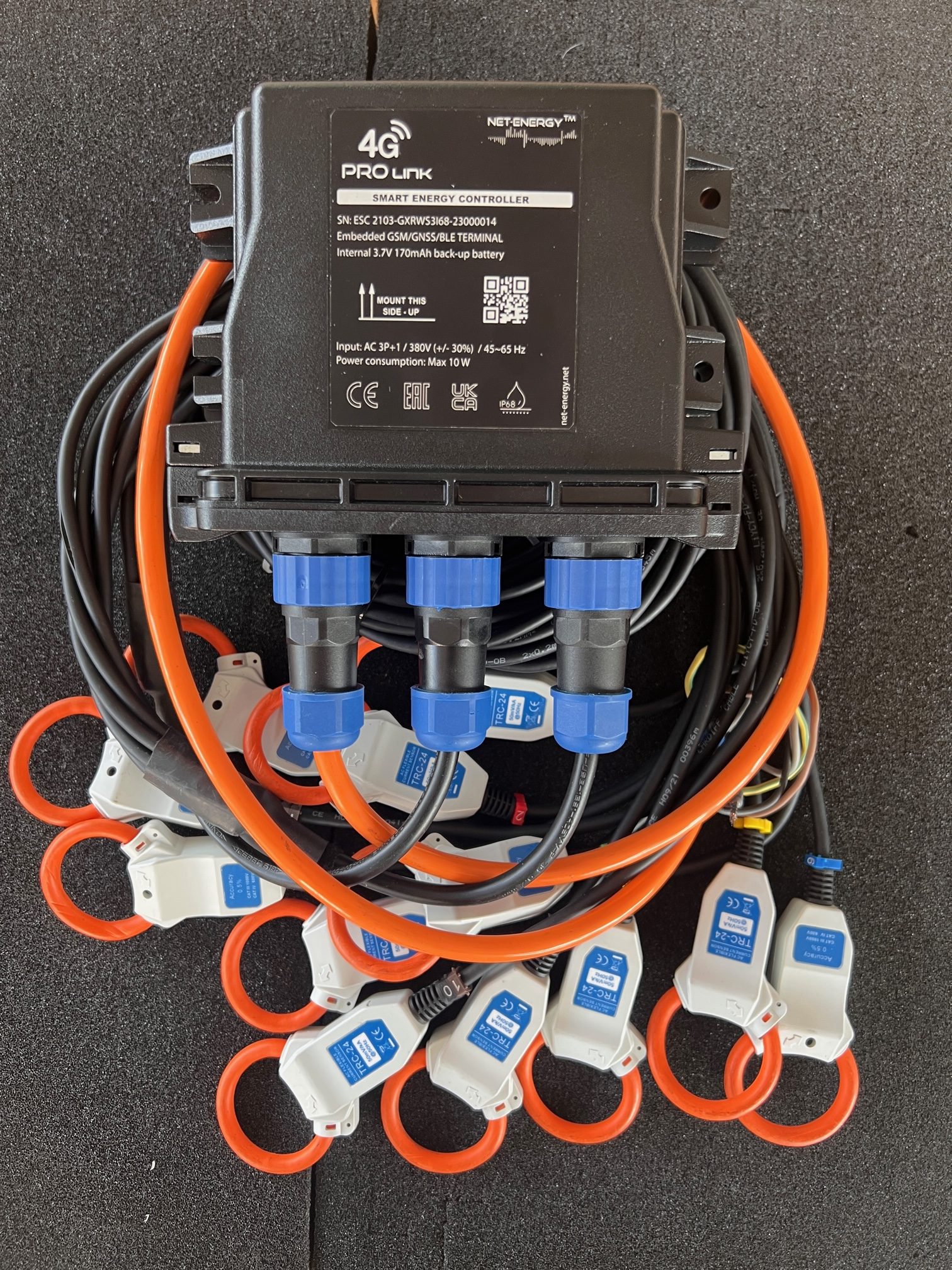

EQA 2103RW/6000 – 4G NbIoT
Online Energy Analyzer, 12 channels, Portable, extreme environment IP68.
- Non-invasive installation with GIS assistance, without network interruption;
- 12 independent channels per core / 660 V / max 6,000 A / channel; 0.5% precision;
- Rapid scalability up to 1080 channels (90 x 12);
- Mixed configuration of single-phase / three-phase in any combination;
- Monitored Parameters: Active / Reactive / Apparent Power / Power Factor/ Frequency / Active Energy Import-Export /Reactive Energy Import-Export / Zero Sequence / Unbalance Angle / Voltage-Current-Frequency Deviations / Current Leakage / Maximum Power Demand;
- Monitoring of contact / electrical cable temperatures;
- Power quality analysis: Harmonic distortions 1-50 / channel;
- Industrial protection rating IP68 (-30 / +70 °C);
- Portable plug & play installation in extreme environments (water / dust / corrosive);
- Included backup battery / network outage detection > 1 second;
- Automatic GPS location of installation point;
- Permanent online connectivity;
- Comunicatie Vodafone 4G / NbIoT VPN inclusa (nu foloseste Wi-Fi);
- Vodafone 4G / NbIoT VPN communication included (does not use Wi-Fi);
- Advanced dispatching on mobile devices with over 1,000 parameters;
- Intelligent dynamic synthesis with color-coded status indicators;
- Advanced identification of load types – booster pumps, pumps, TRIAC controllers, motors, etc;
- Machine learning algorithm for identifying consumption outside set programs (Waste Energy Detection);
- Interactive mobile application with extensive / programmable notifications;
- Automatic alerting / disconnection for abnormal load behavior;
- Automatic alerting / disconnection for micro-cuts / power outage;
- Rule programming and monitoring of dynamic situations in any configuration;
- Multiple API interfaces;
- Included AWS cloud data storage for up to 5 years.
